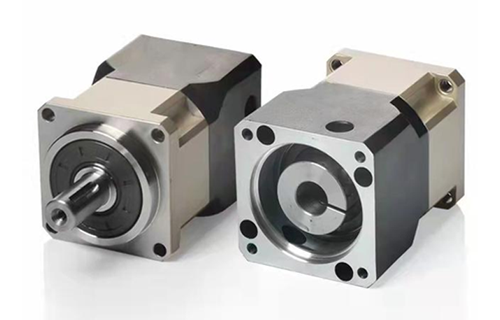

Right angle planetary gearbox: thoughts behind its advantages
The right angle planetary gearbox has advantages such as being usable in limited installation space and flexible installation, but we also need to deeply consider the significance behind these advantages.

From a design perspective, its advantages have led to a change in the design philosophy of the entire mechanical system. Designers no longer need to design large and organized equipment spaces to meet the installation requirements of traditional reducers.

For example, in the design of some smart home devices, due to the existence of right angle planetary reducers, designers can boldly attempt miniaturization and multifunctionality, integrating various functional modules compactly together. From a cost-benefit perspective, its advantages contribute to reducing overall costs.

In industrial production, due to its ability to adapt to narrow spaces and flexible installation, it reduces the need for special customized equipment or additional space modifications, thereby saving equipment procurement and installation costs. Moreover, due to its widespread application in multiple industries, it has also promoted the development of related industrial chains, formed economies of scale, and further reduced costs.

Working principle

The planetary gearbox is mainly composed of components such as the sun gear, planetary gear, inner ring gear, and planetary carrier. The sun gear is located at the center position, surrounded by multiple planet gears that mesh with both the sun gear and the internal gear ring. The planet gears are installed on the planet carrier. When power is input to the sun gear, the sun gear drives the planetary gear to rotate around its own axis, while the planetary gear revolves along the inner gear ring, outputting power through the planetary carrier, thereby achieving the functions of deceleration and torque amplification.

Structural characteristics

Small size and light weight: Due to the use of planetary gear system structure, multiple planetary gears are evenly distributed around the sun gear, which can share the load. Compared with traditional reducers, planetary reducers can greatly reduce the volume and weight while transmitting the same power, making installation and use easier.

High transmission efficiency: The gear meshing method of planetary reducers is relatively reasonable, with low tooth contact stress and friction loss. Generally, the transmission efficiency can reach 90% -98%.

Wide range of transmission ratios: By changing the number of teeth on the sun gear, planetary gear, and inner ring gear, it is easy to achieve a wide range of transmission ratios. Generally, single-stage transmission ratios can be between 3-10, and after multi-stage combination, transmission ratios can reach hundreds or even higher.

Strong load-bearing capacity: Multiple planetary gears simultaneously mesh with the sun gear and inner ring gear, resulting in even load distribution. Each gear bears a relatively small load, allowing the planetary gearbox to withstand greater torque and power.
