What is the purpose of equipping a servo motor with a reducer to reduce the rotational speed? What is the purpose of equipping a stepper motor with a reducer?

In the fields of automation and precision control, stepper motors and servo motors, as the two core executive components, each play a crucial role. They drive various mechanical devices to achieve expected actions and functions by precisely controlling the rotation angle and speed. In practical applications, we often observe the use of stepper motors in conjunction with reducers. Although servo motors with reducers are mainly used to reduce speed and increase torque, the purpose of stepper motors with reducers is more diverse and in-depth. This article will delve into the multiple purposes and significant advantages of combining stepper motors with reducers.

1、 Basic characteristics and challenges of stepper motors

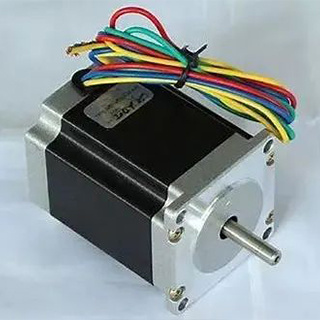

Stepper motors are known for their high-precision positioning ability under open-loop control, which can perform precise step movements according to preset pulse signals. This characteristic makes it widely popular in application scenarios that require precise control of position, speed, and acceleration, such as CNC machine tools, 3D printers, automated assembly lines, etc. However, stepper motors also face some inherent challenges:


1. Low torque output: During high-speed operation, the torque output of stepper motors is often low, making it difficult to meet the requirements of large loads or high dynamic performance.


Step loss: During sudden load changes or excessive acceleration, the stepper motor may experience step loss, which can affect the stability and accuracy of the system.


3. Vibration and noise: Due to the stepping characteristics of stepper motors, significant vibration and noise may occur during high-speed operation, affecting the overall performance and user experience of the equipment.

2、 The function and type of gearbox


As a power transmission device, the main function of a reducer is to reduce speed, increase torque, and reduce inertia and vibration of moving parts. Common types of reducers include planetary reducers, worm gear reducers, and harmonic reducers, each with its specific application scenarios and performance characteristics.

3、 The purpose of equipping a stepper motor with a reducer


1. Increase torque output: Through the deceleration effect of the reducer, the output torque of the stepper motor can be significantly increased, which can drive larger loads and achieve more complex motion control.


2. Improve positioning accuracy: The reducer can effectively reduce the step angle of the stepper motor, making each step of the motion more subtle, thereby improving the positioning accuracy and resolution of the system. This is crucial for applications that require high-precision positioning.


3. Reduce the risk of step loss: In the case of sudden load changes or the need for rapid acceleration/deceleration, the reducer can reduce the acceleration demand of the stepper motor, thereby reducing the possibility of step loss and improving the stability and reliability of the system.


4. Reduce vibration and noise: The reducer can absorb and disperse the vibration and noise generated by the high-speed operation of the stepper motor, making the entire system smoother and quieter. This is of great significance for improving user experience and device lifespan.


5. Optimize dynamic performance: By selecting a reasonable reducer, the dynamic performance of the stepper motor can be optimized, such as response time, acceleration, and deceleration, to better adapt to various complex working conditions.

4、 Advantages case of stepper motor with reducer


1. CNC machine tools: In CNC machine tools, stepper motors with reducers can achieve high-precision feed control, ensuring the dimensional accuracy and surface quality of the machined parts. At the same time, the reducer can reduce the vibration and noise of the stepper motor, improve the stability and efficiency of the machining process.


2. 3D printer: In the field of 3D printing, stepper motors with reducers can accurately control the movement speed and position of the extrusion head, ensuring the uniformity and accuracy of the printed layer. In addition, the reducer can also reduce the vibration and noise of the extrusion head, improve printing quality and user experience.


3. Automated assembly line: On the automated assembly line, stepper motors with reducers can drive precise assembly of various precision components, such as electronic component mounting and component tightening. The addition of reducers enables stepper motors to cope with larger loads and more complex motion trajectories, improving the production efficiency and flexibility of assembly lines.

5、 Conclusion and Prospect


The combination of a stepper motor and a reducer is not only to solve the problems of insufficient torque, high risk of stepping loss, and high vibration noise of the stepper motor itself, but also to improve the positioning accuracy, stability, and dynamic performance of the entire system. With the continuous development of automation and intelligent manufacturing technology, the combination application of stepper motors and reducers will become increasingly widespread, becoming an important force in promoting Industry 4.0 and intelligent manufacturing processes. In the future, with the continuous advancement of materials science, manufacturing processes, and control technology, the performance of stepper motors and reducers will be further improved, providing more reliable and intelligent solutions for various high-precision and high-efficiency automation applications.


By gaining a deeper understanding of the purpose and advantages of combining stepper motors with reducers, we can more accurately select and apply this combination to maximize efficiency in various automation and precision control scenarios. At the same time, it also provides valuable inspiration and reference for future technological innovation and industrial upgrading.
