Planetary gear reducer: a precise power wizard, how to rewrite the transmission rules of modern industry?

Behind the nimble joints of robots, the giant blades of wind turbines, and even the precision wheels of Mars rovers, lies a pinnacle design of ergonomics - planetary gear reducers. It carries precise control of the power of thousands of tons with a volume smaller than a palm. Why can this seemingly simple "gear combination" become the "hidden champion" in the field of industrial transmission? Today, we delve into the microscopic world of gear meshing and uncover the technological code of planetary reducers.

1、 The mechanical projection of cosmic philosophy: the structural mystery of planetary gears

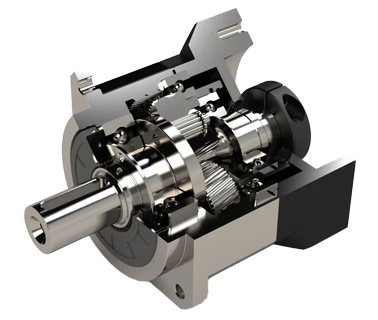

The naming of planetary gear reducers comes from their high similarity to the operation of the solar system: the central gear (sun gear) rotates constantly, the surrounding planetary gears revolve around the sun gear while rotating, and the outer ring gear wraps around the entire system like the boundary of the universe. This structure is not a coincidence, but the ultimate abstraction of natural laws by humans.

Innovation breakthrough point:

1. Load sharing mechanical design: The load of traditional parallel axis gears is concentrated in single point meshing, while planetary gears share the load through 3-6 planetary gears simultaneously, increasing the contact area by more than 300% and the theoretical service life can reach 100000 hours.

2. Dynamic Balance Revolution: The force couple structure formed by the symmetrical distribution of planetary gears enables radial forces to cancel each other out, and the vibration value can be controlled below 0.5mm/s (ISO10816 standard).

3. Space folding art: With a 40% reduction in axial length, the single-stage transmission ratio can reach 10:1, and after three stages are connected in series, it can even break through the astonishing reduction ratio of 1000:1.

2、 The Extreme Challenge of Materials Science: When Gears Meet the Stars and the Sea

In the vacuum environment of the Chang'e-5 lunar sampling arm and the corrosive working conditions of the deep-sea ten thousand meter probe, every rotation of the planetary gears is a challenge to the material limits:

-Surface modification technology: Using low-temperature ion sulfurization process, a 5 μ m FeS solid lubricating layer is formed on the surface of the gear, reducing the friction coefficient to 0.06, comparable to PTFE coating.

-Topology optimization design: Based on finite element analysis, a hollow planetary carrier reduces weight by 30% while maintaining 99% structural strength, helping industrial robots overcome speed bottlenecks.

-Space level lubrication scheme: Molybdenum disulfide+nanodiamond composite grease, maintaining stable lubrication in the temperature range of -180 ℃ to 450 ℃, enabling the gearbox of the Zhurong Mars rover to withstand Martian dust storms.

3、 Cross border Disruption: From Industrial Masterpieces to Life Sciences

Planetary gear reducers are breaking through the boundaries of traditional manufacturing and demonstrating amazing potential in more fields:

1. Medical Revolution: A Swiss laboratory has implanted a miniature planetary reducer (diameter 8mm) into an artificial heart pump to maintain blood pulsation with a precise torque of 0.01N · m, with an error rate of less than 0.001%.

2. Agricultural innovation: The intelligent picking robot adopts harmonic planetary compound transmission, which can achieve force self adjustment within 0.1 seconds, reducing the strawberry damage rate from 15% to 0.3%.

3. Energy breakthrough: The hydraulic pitch system of floating offshore wind power achieves precise 0.1 degree angle adjustment of 200 ton blades through planetary gearboxes, improving wind capture efficiency by 18%.
