Harmonic gear reducer

Release Time ：

2024-10-18

Source ：

network

Author：

Made by Guangdong Yongkun Motor Co., Ltd

Harmonic gear reducers are increasingly widely used in aviation, aerospace, energy, navigation, shipbuilding, biomimetic machinery, commonly used military equipment, machine tools, instruments, electronic equipment, mining metallurgy, transportation, lifting machinery, petrochemical machinery, textile machinery, agricultural machinery, and medical equipment. Especially in high dynamic performance servo systems, the use of harmonic gear transmission further demonstrates its superiority. It transmits power ranging from tens of watts to tens of kilowatts, but high-power harmonic gear drives are often used in short-term work environments.

The precision machining equipment for high-performance reducers mainly comes from foreign manufacturers such as Japan and Switzerland. At the same time, the design, materials, heat treatment, processing technology, gears, bearings, seals, assembly technology, part inspection, and finished product inspection of reducers require high-end technology support.

Harmonic reduction gearbox:

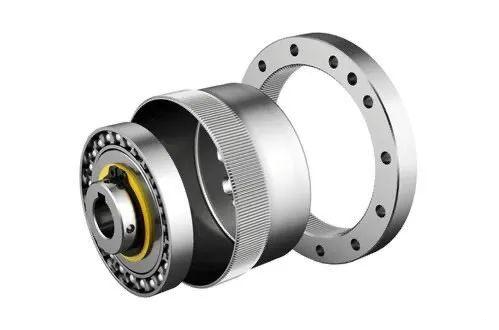

Definition of harmonic gear drive: It is mainly composed of four basic components: wave generator, flexible gear, flexible bearing, and rigid gear. Harmonic drive reducer is a gear transmission that relies on the assembly of flexible bearings on the wave generator to produce controllable elastic deformation of the flexible gear, and meshes with the rigid gear to transmit motion and power. Applied discipline: Mechanical Engineering (first level discipline); Transmission (secondary discipline); Gear transmission (third level discipline) Harmonic gear transmission reducer is a new type of reducer developed using the principle of planetary gear transmission. Harmonic gear drive (abbreviated as harmonic drive).
